NetworkHD™ 300 Series 1080p AV over IP H.264 Open Standards Encoder

NHD-300-TX

The NHD-300-TX is a powerful A/V encoder that allows streaming of 1080p HDMI content over a network in a myriad of ways. By supporting standard protocols such as RTSP, RTMP, Unicast and Multicast, transmissions can be decoded by a broad range of 3rd-party hardware and software solutions. Easily live stream events to popular platforms such as YouTube, Facebook, Wowza, OBS through native options in the powerful Web UI. The NHD-300-TX is great for Schools and Universties to broadcast lessons to students, Churches for sharing services and any application where sharing content over a network is required.

OVERVIEW

LOW BANDWIDTH
Using the latest in H.264 compression technology, the NHD-300-TX will hardly make a footprint on your network. Achieve picture perfect 1080p HD video distribution and low latency transmissions without the need to have an expensive network infrastructure.

POE
Convenience is key with any install and being able to power the NHD-300-TX via a PoE enable network switch allows that to happen. Powered by standard 802.11af PoE, reduce points of failure and forget the need to use ugly power adapters.

LIVE STREAMING
Compatibility with services such as YouTube, Facebook, Wowza, OBS and many more allow the NHD-300-TX to stream to practically any platform or decoder. Whether you’re an original content creator or a University looking to stream to students, the NHD-300-TX has you covered.

FLEXIBLE DECODING
Not only is the NHD-300-TX great for live streaming applications but it has just as many use-cases for Local Area Network streaming as well. By using a standard H.264 codec and established network streaming protocols, the NHD-300-TX can be decoded by smart TVs, phones, tablets and web browsers.

• Supports video content up to 1920x1080p @60Hz 8bit
• HDMI loop out for connection to a local monitor or secondary distribution system
• 3.5 mm input for secondary audio encoding separate to HDMI audio
• 802.11af PoE compatibility allows encoder to power from a network switch while retaining 12v DC power for flexible power options
• Low bandwidth H.264 network transmission supports configurable encoding rates between 16Kb/s~12Mb/s
• Flexible audio encoding allows selectable options between MP3 or AAC formats at up to 384Kb/s
• Supports audio sampling rates of 32Khz, 44.1Khz and 48Khz
• Feature rich and intuitive Web UI allowing several customization options and configurations
• Native compatibility with popular platforms such as YouTube, Facebook, Wowza and many more
• Uses standard network streaming protocols such as HTTP, RTSP, RTMP, UDP, Multicast and Unicast
• Small form factor design that is compatible with NetworkHD series rack mounts
• Multiple simultaneous encoded outputs using different stream formats

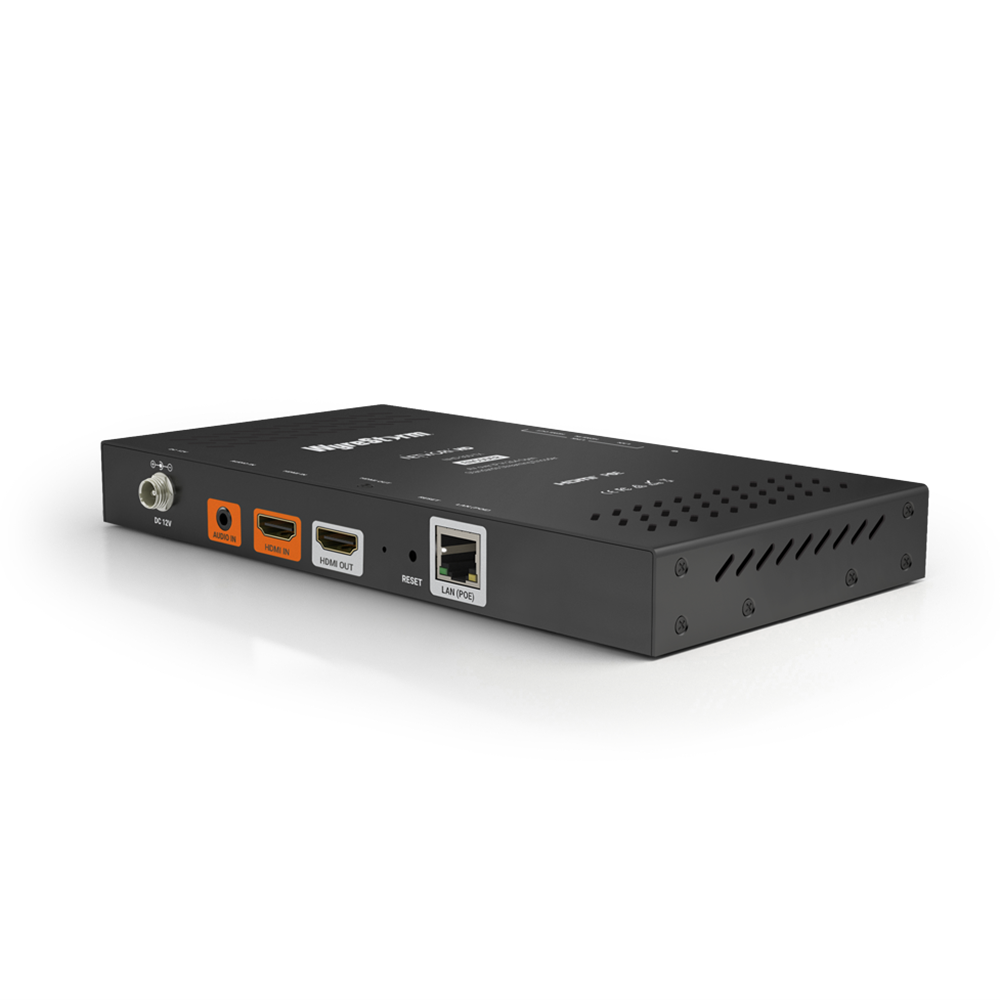

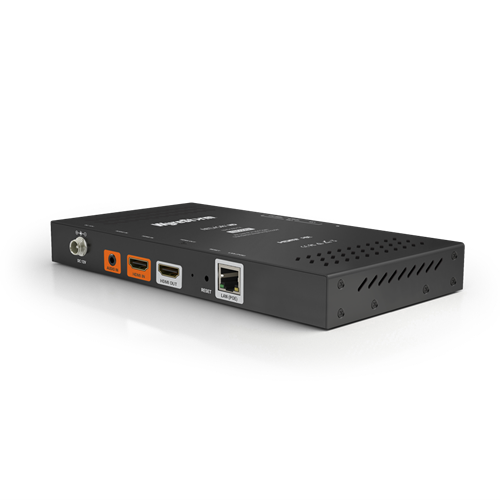

• Inputs:
  • 1x HDMI In 19-pin HDMI type A
  • 1x Audio In: 3.5mm (1/8in) TRS Stereo
• Outputs:
  • 1x LAN (PoE) 8-pin RJ-45 female, 1000Base-T
  • 1x HDMI 19-pin HDMI Type A (Loop Out)
• Encoding Data Rate: Max: 12Mb/s (Configurable)
• Audio Formats: 2ch LPCM @ 32KHz, 44.1KHz, 48KHz
• Output Video Encoding: H.264
• Video Resolutions (Max):
  • HDMI: 1920x1080p @60Hz 8bit (15m/50ft)
  • Using Cat6/6a/7: 1920x1080p @60Hz 8bit (100m/328ft Point to Point)
• Output Audio Encoding: AAC, MP3 @ 320Kb/s (Max)
• End to End Latency (Max): 80ms (TCP/UDP), 1500ms (HTTP)
• Maximum Pixel Clock: 150 MHz

• HDMI HDMI 1.4 | HDCP Encryption Not Supported
• Ethernet: 1x LAN: 8-pin RJ-45 ANSI/TIA-568 8P8C, 1000Base-T, PoE

• Protocols HTTP, RTSP, RTMP, UDP, Multicast, Unicast, DHCP

• Power Supply 12V DC 2A
• PoE IEEE 802.3af | 15.4W at PSE
• Max Power Consumption 3.6W (with PSU)

• Operating Temperature 32°F ~ 113°F (0°C ~ 45°C)
• 10% ~ 90%, non-condensing
• StorageTemperature -4°F to ~ 158°F (-20°C ~ +70°C)
• 10% ~ 90%, non-condensing
• Maximum BTU 16 BTU/hr

• Rack Units/Wall Box <1U flat on shelf | 6U in NHD-000-RACK4 | 1U in NHD-140-RACK-1U
• Height 25mm/1in
• Width 215mm/8.46in
• Depth 142mm/5.59in
• Weight 0.65Kg/1.41lbs

• Safety and Emission CE  |  FCC  |  RCM |  EAC | ROHS
