  • O-PC-4 Power Conference. Dual Screen. Daisy chain and long range USB-C upport

O-PC-4 Power Conference. Dual Screen. Daisy chain and long range USB-C upport

Product Code: OC-O-PC-4

Brand
Ochno
$4,789.00 inc GST
RRP $4,789.00

Limited Stock
Increase value Decrease value
Unit of Measure
EACH


3 Year
Technical Specifications
Brands Ochno
  • Details
  • Downloads
  • Ordering

Ochno Power Conference 4


Dual screen support and long range USB-C for longer distance meeting rooms.

The New Standard in Connectivity.

Introducing the Ochno Power Conference 4, our next-generation solution for even more versatile meeting rooms. Enhanced daisy chaining capabilities allow seamless integration across multiple outlets, redefining connectivity for longer distance.


General

Product name
Ochno Power Conference 4

Product code
OC-O-PC-4

Box contents

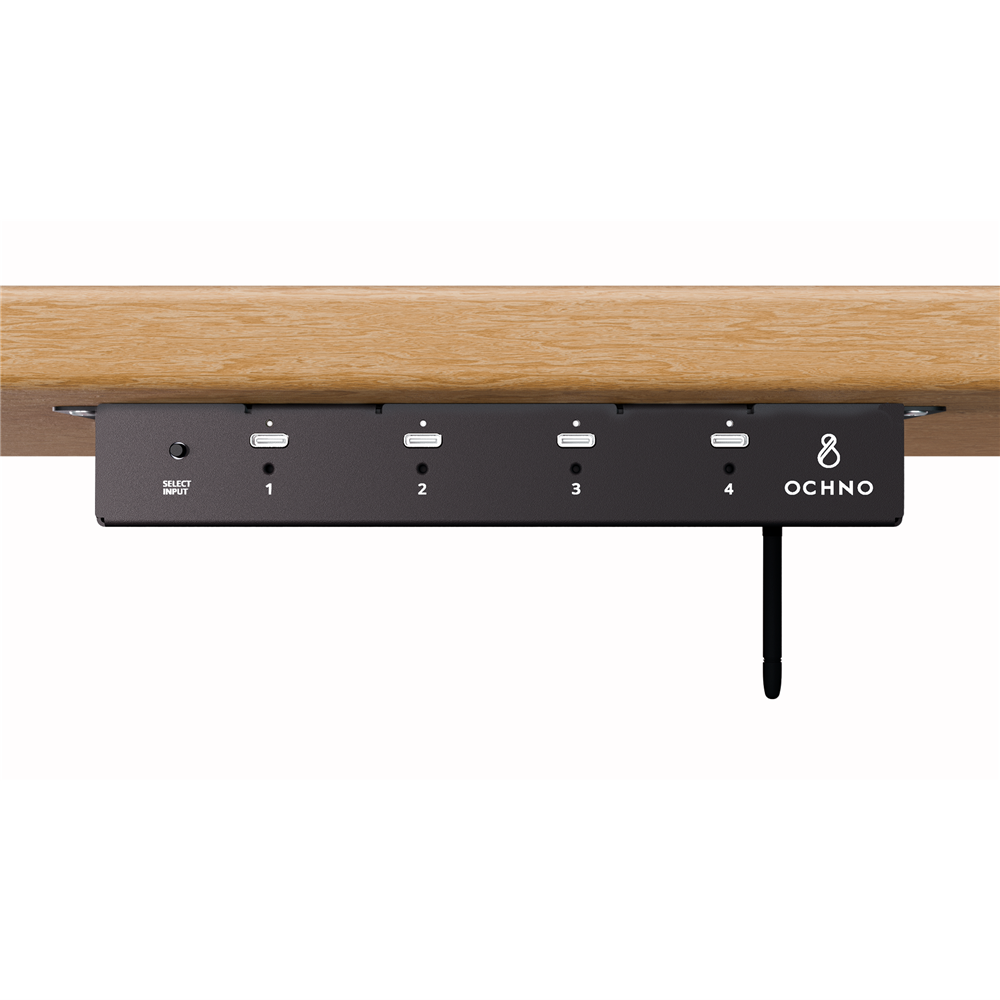

Main unit, power adapter, mounting brackets for installing underside of table, manual in English.

Warranty
3 years

Dimensions
215 x 130 x 33 mm

Weight
680g

Certificates
CE, FCC, ETL, RoHS, REACH

Safety class
IP20, 5%-80% RH operation. 5%-95% under transport

Ambient temperature
5° – 40°C.

Protection
Over-current, over-voltage, over-temperature

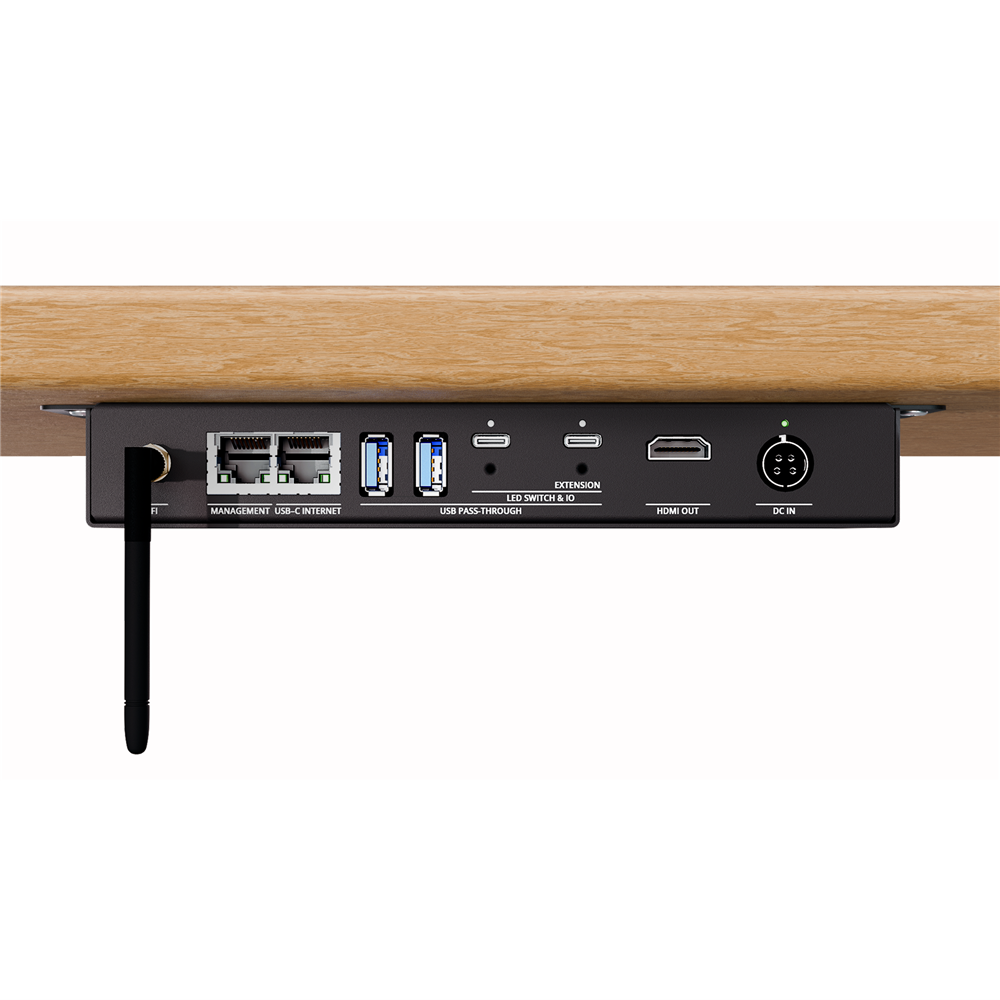

Port Specification

WIFI Antenna
2.4 GHz WIFI connectivity to Ochno Operated management portal.

RJ45 1
10/100 Mbit/s Ethernet connectivity to Ochno Operated management portal.

RJ45 2
10/100/1000 Mbit/s Ethernet connectivity to Ethernet-sharing via active USB-C port.

USB-A Downstream Ports
2 x USB 3.2 Gen 2 Ports. Speed up to 10 Gbps. 5V / 0.9A power supply.

USB-C Downstream Ports
2 x USB 3.2 Gen 2 Ports. Speed up to 10 Gbps. 5V / 3A power supply. Power Delivery 3.0.

USB-C Extension Port
In addition to above: DP alt-mode 1.4 video output, HBR3, 2 or 4 DP lanes. Up to 4 x 8.1 Gbps video output.

HDMI Out
HDMI 2.1 video output. Max resolution 8k 60Hz. HDCP v2.3. FRL mode in 3 or 4 lanes,12 Gbps / lane.

DC IN
20V / 10A power supply input.

USB-C Input ports
4 x USB Type-C USB 3.2 Gen 2 Ports. Speed up to 10 Gbps. Up to 20V / 5A / 100W power supply. DP alt-mode 1.2 (HBR2)-1.4 (HBR3) video input.

Port Functions
Management
The Ochno Management Console allows for local management via a Windows/Mac app. Remote management is facilitated through Ochno Operated, while LAN management can be accessed via a local IP interface.

USB-C Internet
The network connected to the USB-C Internet port is shared via USB to the actively selected USB-C port, providing network access without the need for Wi-Fi.

USB Pass-through
The two USB-A ports and two USB-C ports typically connect USB devices. These devices become accessible to the computer connected to the currently selected USB-C input port.

USB Pass-through on USB-C Upstream Ports
In addition to the four downstream ports, the four USB-C upstream ports can also function as downstream ports, allowing for a total of seven downstream ports.

LED Switch & IO
All USB-C ports can connect to special Ochno devices, such as LED button switches and RS232 adapters. The USB-A ports are statically re-configured for this purpose, while the USB-C ports are dynamically re-configured.
Extension
The extension port can transmit both video and USB communication to a downstream USB-C device, such as another O-PC-4, an O-PC-4-NODE, a device supporting USB-C upstream, or a standard USB-C to HDMI adapter.

Video Out

The O-PC-4 features an internal DP MST hub, enabling dual video output. A Windows laptop can use the “Extend Desktop” option to display different content on each screen. For setups with two HDMI displays, a USB-C to HDMI adapter can be connected to the Extension port for a second HDMI output. Apple MacBooks will mirror the same image on both displays.

Designed in Sweden. Made in UK
