Renkus Heinz

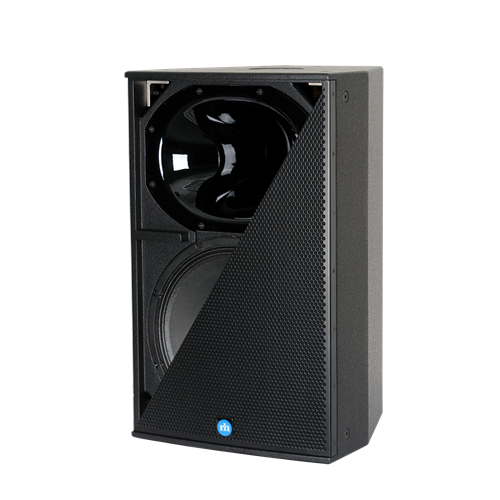

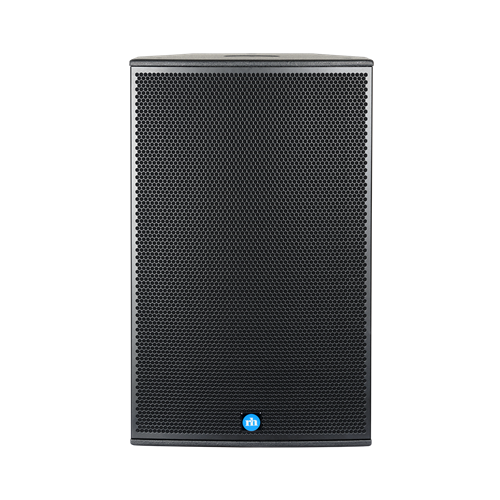

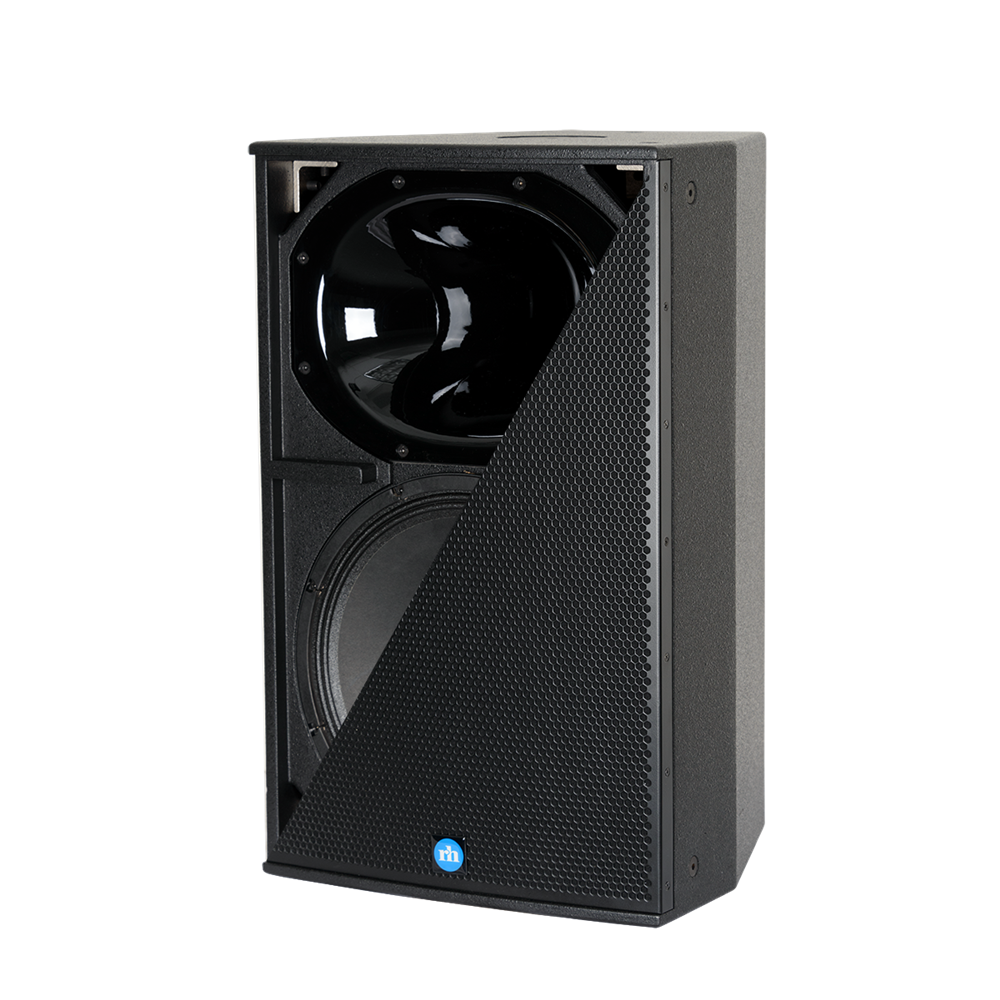

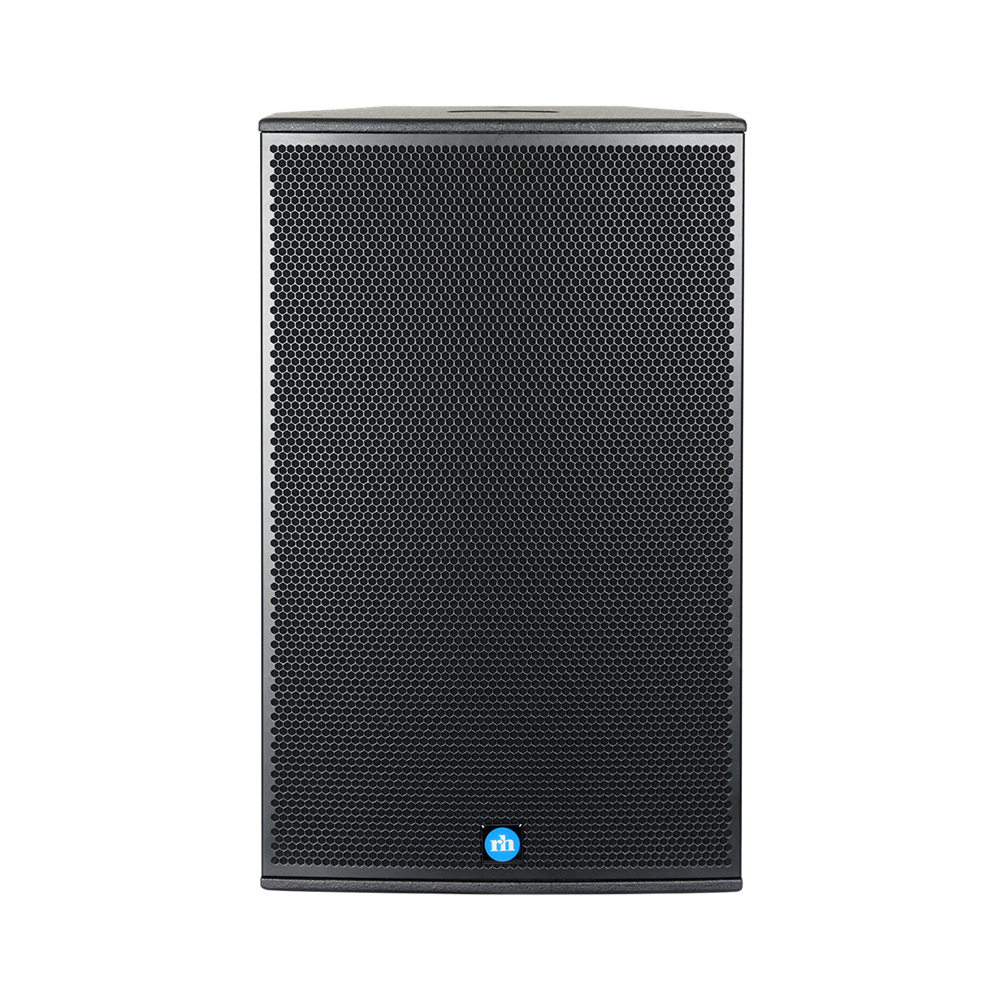

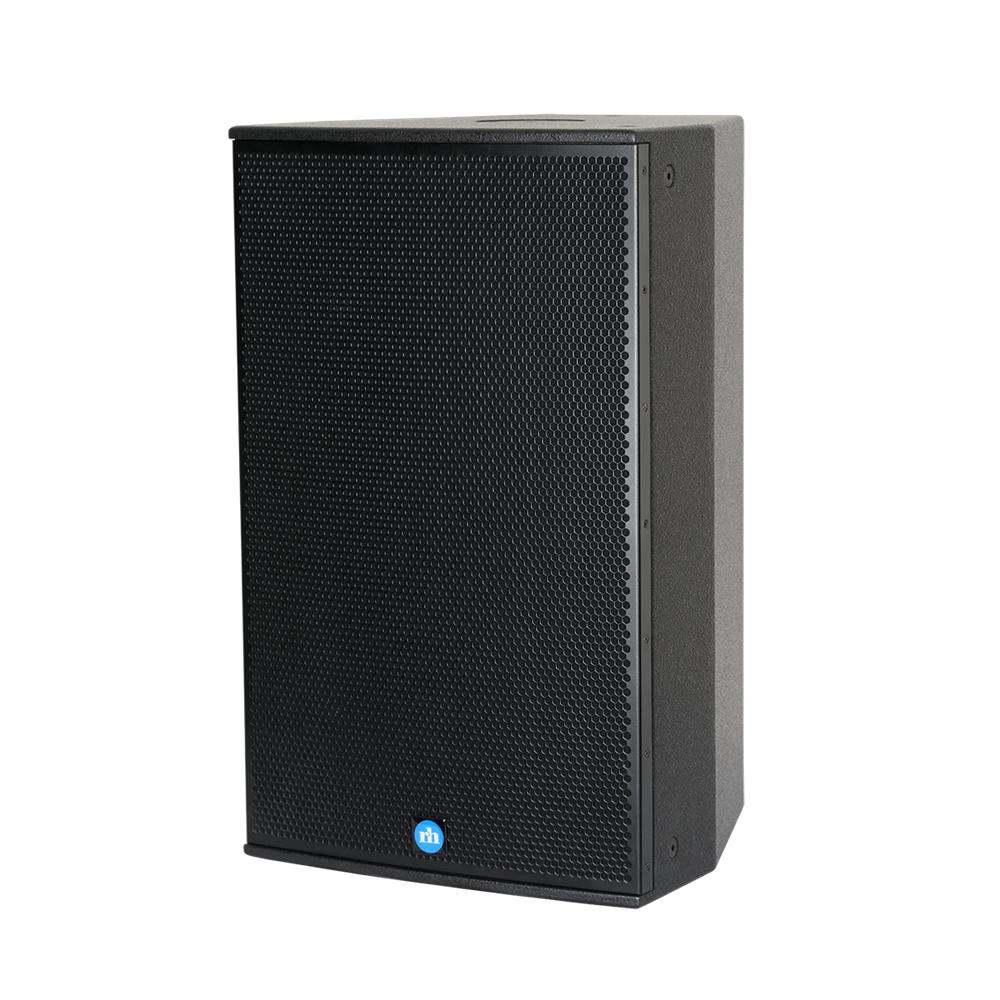

CX151 Two-Way Complex Conic Loudspeaker Systems

Product Code: RH-CX151-B

Brand
Renkus Heinz
$3,100.00 inc GST
RRP $3,100.00

In Stock at Supplier
Increase value Decrease value
Unit of Measure
EACH


5 Year
Technical Specifications
Brands Renkus Heinz
  • Details
  • Downloads
  • Ordering
15-inch Woofer + 2-inch voice coil HF Driver

Sound that makes performances and audiences truly come alive doesn’t come easy. But C Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

The CX151 features a 15-inch heavy duty woofer and a 2-inch titanium HF driver.

Key Features

• Compact Design
Outstanding, full-range ± 3 dB, 55 Hz to 20 kHz performance in a compact, space-saving design.

• Exclusive 60° x 40° Complex Conic Design
Provides constant beamwidth/directivity without the problems of conventional rectangular horns.

• 2-inch Extended Range Titanium HF Driver
Provides smooth, low distortion high frequency performance to 20 kHz and beyond.

• Heavy-Duty 15-inch Woofer
Easily handles 700 Watts of program power.

• Built-in Crossover
Includes EQ and high frequency protection; in the CX151 eliminates need for a separate electronic crossover and bi-amplification.

Technical Information

Sensitivity:

CX151

98 dB (1W/1m)

Max SPL:

CX151

129 dB Peak

Dispersion:

CX151

60° x 40°, non-rotatable complex conic horn, (90° x 40° complex conic horn available for purchase)

Freq. Response:

CX151

± 3 dB, 55 Hz to 20 kHz

HF Driver:

CX151

SSD1747-8, 60 W AES @ 8 ohms

LF Driver:

CX151

SSL15-24, 350 W AES @ 8 ohms

Enclosure:

CX151

Poplar Ply, perforated metal grille

Finish:

CX151

Black or White Paint

Power Rating:

CX151

350 W AES @ 8 Ohms
700 W Pgm @ 8 Ohms

Connectors:

CX151

Screw terminals & looping Neutrik 4-pin SpeakOn style connectors

Hardware:

CX151

12-point Universal Mounting Hardware
(Metric M10 threads)
M10 U-bracket attachment points

Dimensions:

CX151

28-1/2″ H x 17-1/2″ W x 17″ D
724 mm H x 445 mm W x 432 mm D

Weight:

CX151

52 lbs / 23.6 kg, Net
