Renkus Heinz

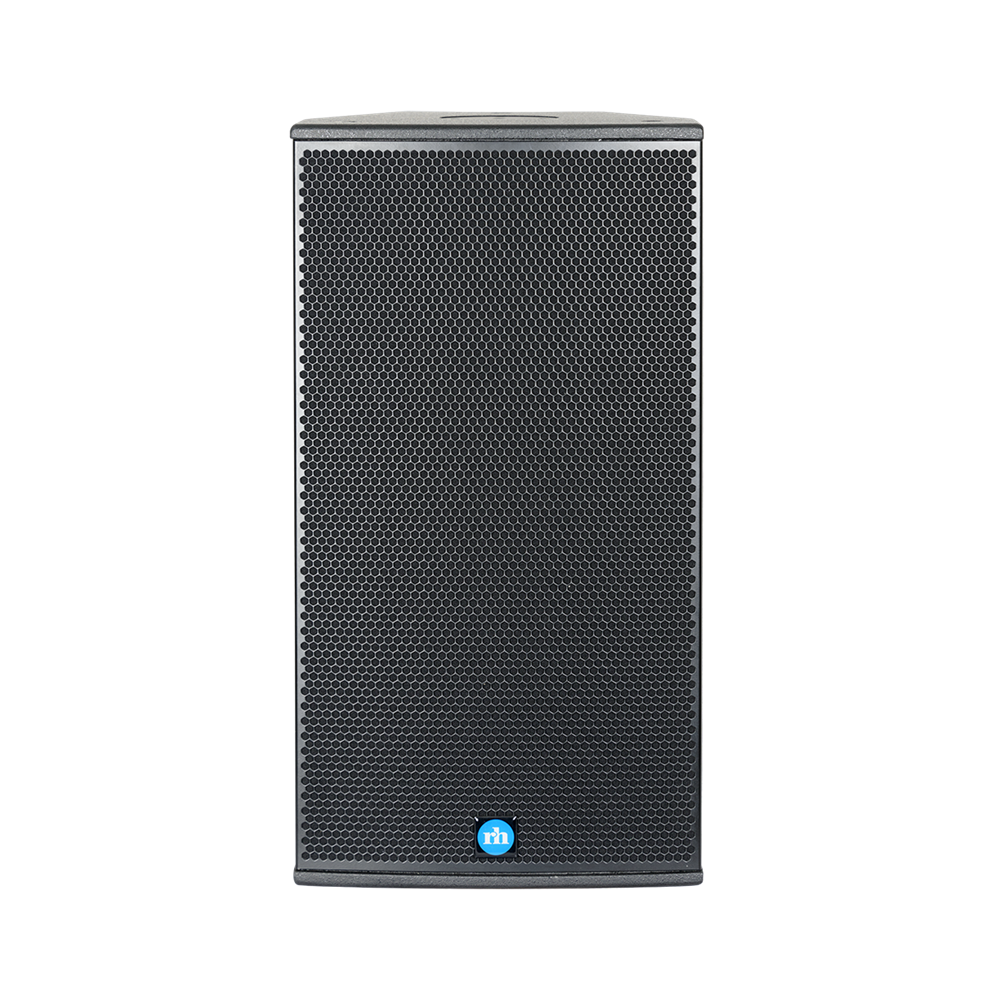

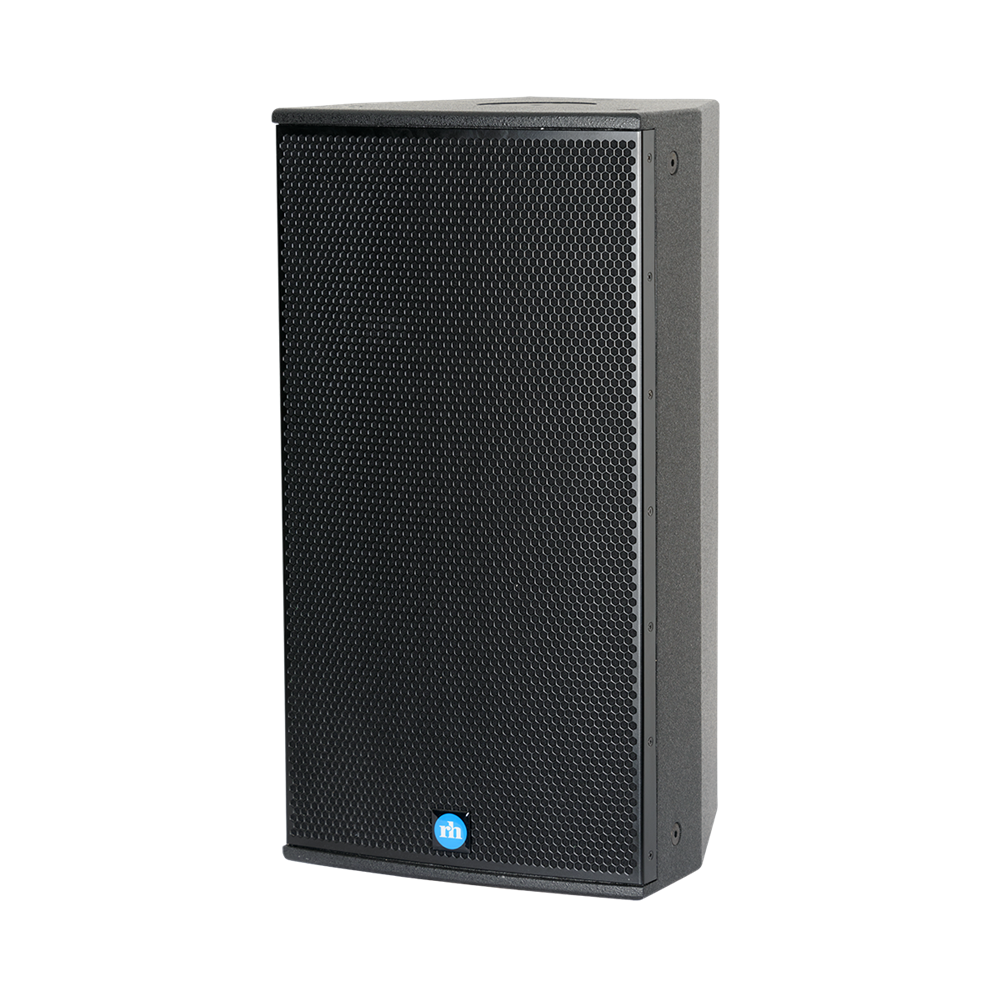

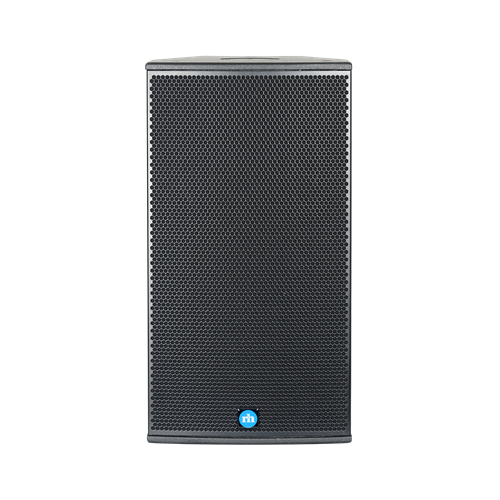

CX121 Two-Way Complex Conic Loudspeaker Systems

Product Code: RH-CX121-B

Brand
Renkus Heinz
$2,600.00 inc GST
RRP $2,600.00

Limited Stock
Increase value Decrease value
Unit of Measure
EACH


5 Year
Technical Specifications
Brands Renkus Heinz
  • Details
  • Downloads
  • Ordering
12-Inch Heavy Duty Woofer + 1.75-inch Titanium HF Driver

Sound that makes performances and audiences truly come alive doesn’t come easy. But C Series loudspeakers put the power of unique Renkus-Heinz developments like Complex Conic Horns to work for you. Versatile enclosure designs, go-anywhere hardware and rugged construction help solve your sound reinforcement challenges easily and quickly.

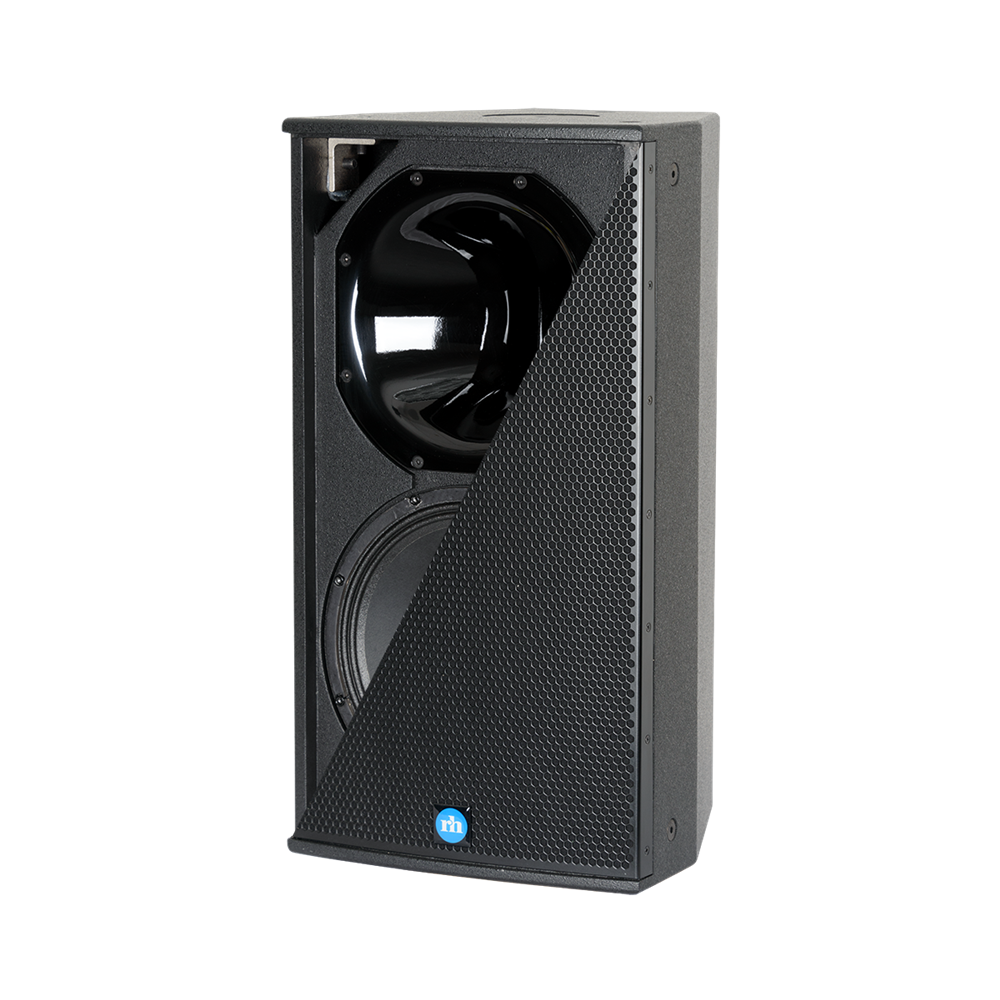

The C121 features a 12-inch heavy duty woofer and a 1.75-inch titanium HF driver.

Key Features

• Compact Design
Outstanding, full-range ± 3 dB, 60 Hz to 18 kHz performance in a compact, space-saving design.

• Exclusive 90° x 40° Complex Conic Design
Provides constant beamwidth/directivity without the problems of conventional rectangular horns; can be rotated 90° within the cabinet for wide or deep listening spaces.

• 1.75-inch Extended Range Titanium HF Driver
High-Frequency compression driver features a 1.75″ Voice-Coil and 1″ Exit that provides smooth, low distortion high frequency performance to 18 kHz and beyond.

• Heavy-Duty 12-inch Woofer
Easily handles 600 Watts of program power.

• Built-in Crossover
Includes EQ and high frequency protection; in the C121 eliminates need for a separate electronic crossover and bi-amplification.

Technical Information



Sensitivity:

CX121

97 dB (1W/1m)



Max SPL:

CX121

128 dB Peak



Dispersion:

CX121

90° x 40°, rotatable complex conic horn, (60° x 40° complex conic horn available for purchase)



Freq. Response:

CX121

± 3 dB, 60 Hz to 20 kHz



HF Driver:

CX121

SSD1747-8 driver, 60 W AES @ 8 ohms



LF Driver:

CX121

SSL12-26, 350 W AES @ 8 ohms



Enclosure:

CX121

Poplar Ply, perforated metal grille



Finish:

CX121

Black or White Paint



Power Rating:

CX121

350 W AES @ 8 Ohms
700 W Pgm @ 8 Ohms



Connectors:

CX121

Screw terminals & looping 4-pin Neutrik Speakon style connectors



Hardware:

CX121

12-point Universal Mounting Hardware
(Metric M10 threads)
M10 U-bracket attachment points



Dimensions:

CX121

27″ H x 14-3/8″ W x 14-1/4″ D
686 x mm H x 365 mm W x 362 mm D

Weight:

CX121

45 lbs / 20.4 kg, Net



Product Documents
