Renkus Heinz

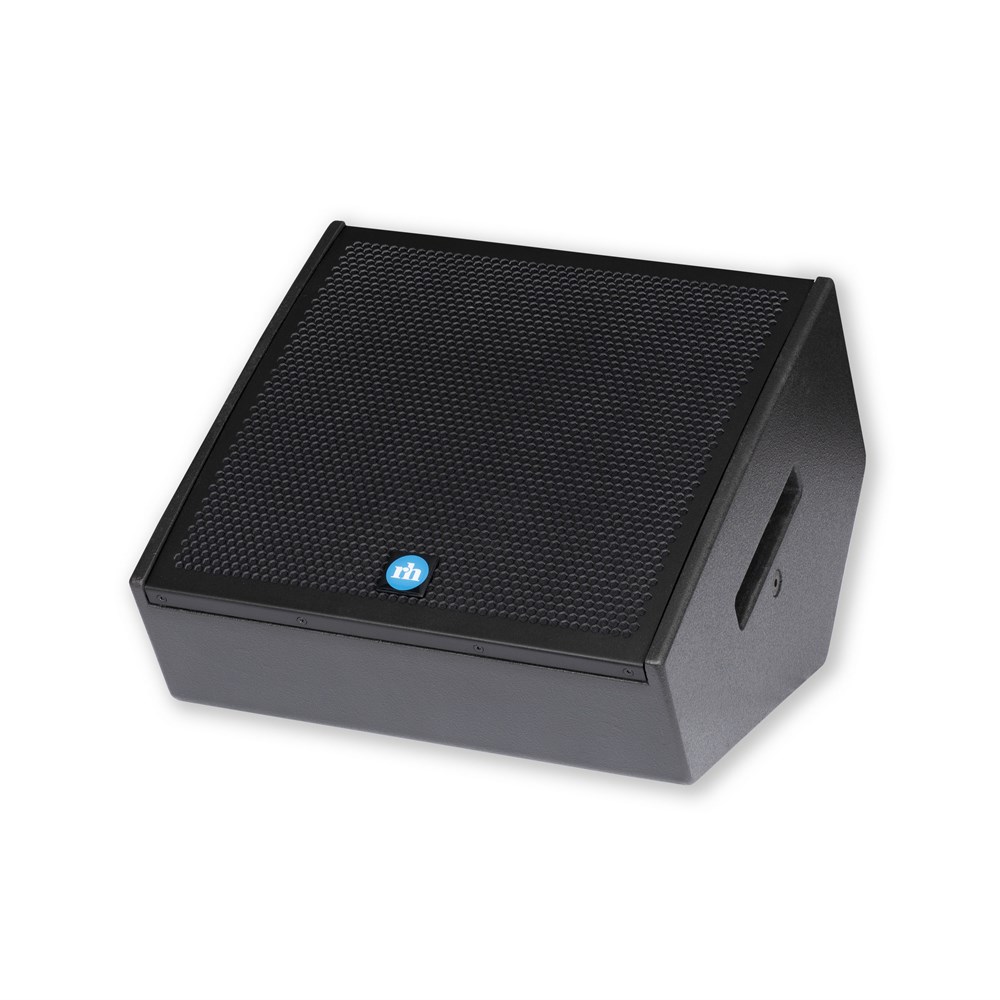

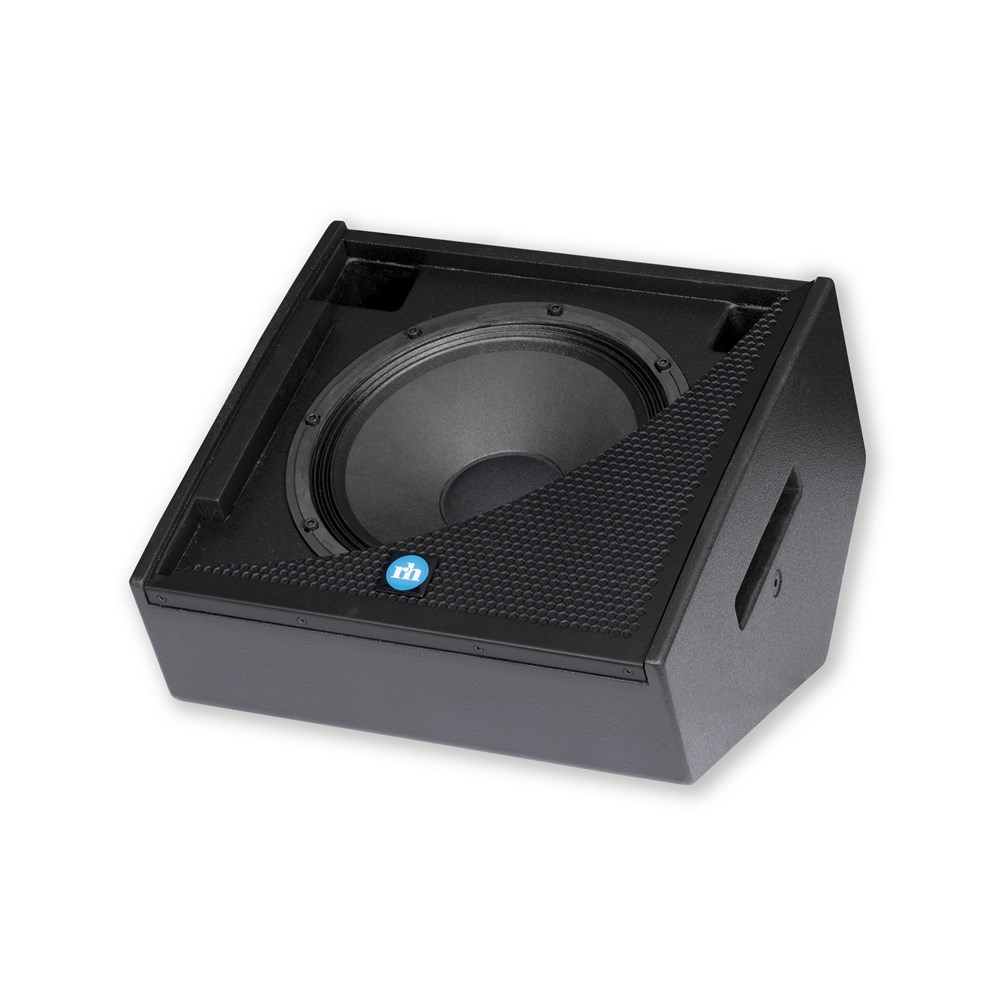

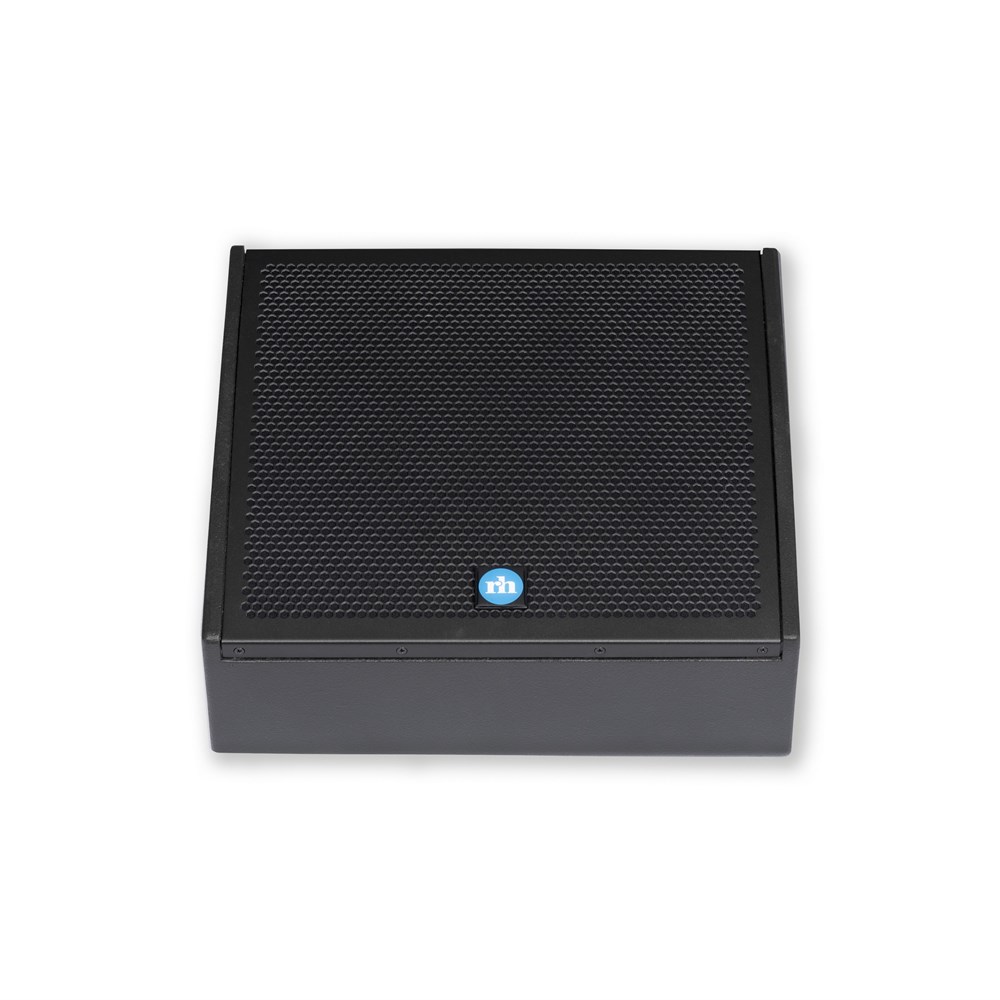

CX121M Two-Way Complex Conic Loudspeaker Systems

Product Code: RH-CX121M-B

Brand
Renkus Heinz
$2,600.00 inc GST
RRP $2,600.00

In Stock at Supplier
Increase value Decrease value
Unit of Measure
EACH


5 Year
Technical Specifications
Brands Renkus Heinz
  • Details
  • Downloads
  • Ordering
12″ LF + 1.75″ HF Two-way, Coaxial Stage Monitor

The CX/CA121M was developed for applications needing consistent directivity and great sonics from a very compact cabinet. It features a coaxial transducer based on a 12” woofer and a 1.75” Voice Coil Compression Driver. The woofer and compression driver share a common motor structure for high performance in a very compact package. The result is natural, distortion free output at high sound pressure levels, ideal for all monitoring applications. The Coaxial design also results in ideal constant directivity, for optimal on and off axis performance.

Key Features

• Coaxial Design
Combines HF and MF output into a single source, allowing for high output in an surprisingly small package.

• Exceptional Performance
55 Hz to 20 kHz response and 130 dB, peak SPL.

Technical Information

Sensitivity:

CX121M

96 dB (1W/1m)

Max SPL:

CX121M

130 dB peak, Half-Space

Dispersion:

CX121M

80° H x 80° V Constant Directivity  / 33° Monitor Angle

Freq. Response:

CX121M

70 Hz to 18 kHz (-3 dB)
55 Hz to 20 kHz (-10 dB)

Driver:

CX121M

Coax: 12” woofer and a 1.75” Voice Coil Compression Driver (SSC12-1)

Enclosure:

CX121M

3/4” lite-ply plywood

Power Rating:

CX121M

Passive: 300 W AES, 600 W @ 8 ohms

Bi-amp: 300 W AES, 600 W PGM @ 8 ohms, LF 60 W AES, 120 W PGM @ 8 ohms, HF

Connectors:

CX121M

Screw terminals & looping 4-pin Neutrik SpeakOn style connectors

Finish:

CX121M

Black or White Paint

Hardware:

CX121M

2 x M10 attachment points  / Optional: UBRKT/CT121MB (black); UBRKT/CT121MW (white)  Optional: EEM-M10 Pole Mount Adapter (Black)

Dimensions:

CX121M

16″ H x 7-7/8″ W x 9-3/8″ D  / 200 mm H X 406 mm W X 238 mm D

Weight:

CX121M

25 lbs / 13.4 kg
