SOUNDPLUS® 4-CHANNEL INFRARED RECEIVER

Induction loop systems

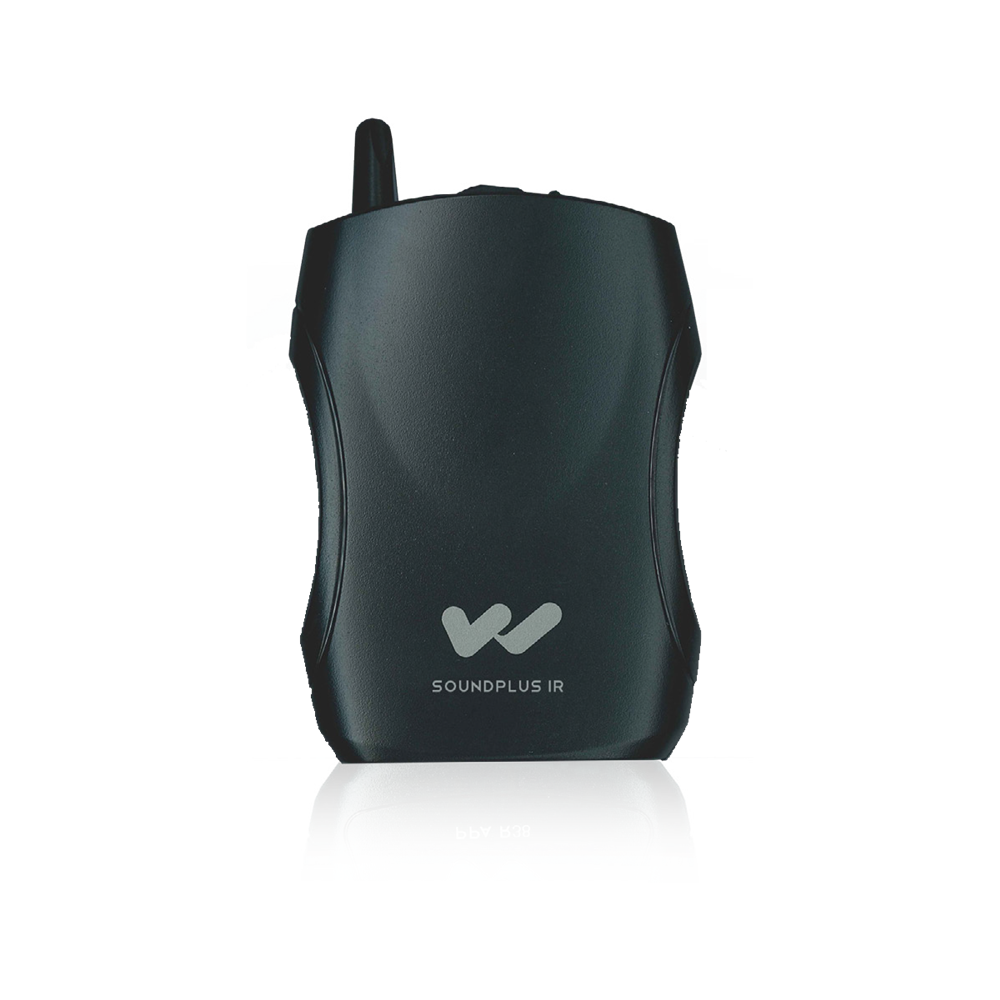

The WIR RX22-4N is a four-channel selectable, infrared receiver compatible with transmitters operating on the 2.3/2.8/3.3/3.8 MHz bandwidth. Dual infrared detectors maximize sensitivity and operating range. Range of up to 30,000 square feet (2,800 square meters) in single-channel mode when used with a Williams Sound WIR TX925 or WIR TX90 infrared system. Comfortable, body-pack design features convenient channel selector and easy-to-use on/off volume control. The RX22-4N can be used with mono or stereo headphones, earphones or a neckloop (lanyard included).

Note: Headphones, earphones, or neckloop sold separately.

System includes

(1) WIR RX22-4N Receiver
(2) RCS 004 Lanyard

Features

Use with earphones, headphones or neckloop (lanyard included)
Uses AA alkaline or rechargeable batteries
Five-year warranty (90 days on accessories)

Specifications

Receiver Style: Body-Pack, dual-lens detector, lanyard
Size: 4.1" L x 2.85" W x 1.2" H (104.1 mm x 72.4 mm x 30.4 mm)
Weight: 4.5 oz (127 g) with batteries
Color and Material: Black
Lanyard: 3 ft (0.91 m), allows receiver to be worn around the neck
Operating Temperature: -10° C to +50° C
Battery Type: 2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2)
Battery Life: Alkaline: 60 hours, NiMH: 30 hours/charge
Battery Drain: 25 mA, nominal
Charging Contacts: For use only with CHG 3512
Carrier Frequency:
- Channel 1: 2.3 MHz, Channel 2: 2.8 MHz
- Channel 3: 3.3 MHz, Channel 4: 3.8 MHz
De-Emphasis: 50 uS
FM Deviation: ±50 kHz
Signal-to-Noise Ratio: 60 dB min.
Squelch: Receiver squelches (mutes) at 28 dB S/N ratio
Frequency Response: 25 Hz to 16 KHz, +1 dB, -3 dB, electrical response
Total Harmonic Distortion: Less than 1%, electrical response
Controls:
- ON/OFF/VOLUME: combination thumbwheel knob
- Channel Selector: four-position rotary switch
Indicators: Red LED “ON" indicator, flashes to indicate Low battery
Audio Output Jacks: 3.5 mm stereo mini phone jack Accepts 3.5 mm mono or stereo phone plug
Audio Output Power: 15 mW max at 32 Ω
Acoustic Output: 125 dB SSPL90 with HED 021; 110 dB SSPL90 w/ EAR 013
Sensitivity: Better than 1 nW/cm2 for 40 dB signal-to-noise ratio
Approvals: CE, FCC, RoHS, WEEE
Warranty: 5 years on receiver, 90 days on accessories
Compatible Headphones/Earphones: Mono or stereo, 8-32 ohms, 3.5 mm mini phone plug, HED 021, HED 026, EAR 013, EAR 014, EAR 022, NKL 001

wir rx22-4n architectural and engineering specifications

The receiver shall be a body-pack type with IR detector lens behind face of the unit.The unit shall have a lanyard for hands-free operation.The receiver shall have a rotary-type volume control.The receiver shall operate for 60 hours with two AA alkaline batteries and for 30 hours per charge with NiMH AA batteries.The receiver shall be charged without battery removal via charger contacts in the case. A drop-in charger accessory shall recharge the batteries in 16 hours when used with CHG 3512 charger.The receiver shall be housed in an impact resistant plastic case with a hinged battery door that does not separate from the receiver.The receiver shall receive 2.3 MHz, 2.8 MHz, 3.3 MHz or 3.8 MHz modulated IR signals with 50 µS de-emphasis. The receiver shall have a 3.5 mm stereo phone jack and accommodate low-impedance mono or stereo earphones and headphones.The receiver shall accommodate neckloop telecoil couplers.The receiver shall provide 125 dB SSPL90 output with HED 021 headphone and 110 dB SSPL90 with EAR 013 earbud-type earphone.The system electrical frequency response shall be 25 Hz to 16 kHz, +1, -3 dB and the S/N ratio shall be 60 dB.The receiver shall have CE, FCC RoHS and WEEE approval. The receiver shall be covered by a five-year parts and labor warranty, excluding earphones, headphones, batteries and chargers.The receiver shall be the Williams Sound model WIR RX22-4.
